TSG-1224NC AKUMA Precision surface grinder
Characteristic:High-precision grinding machine with good stability, suitable for high-precision industries such as semiconductor, mold, optics, and dental industry.
Diagram of lubricant loop
Integrated design including spindle with cartridge type,spindle of grinding wheel,and motor.
Working height
The distance form surface to center of grindingwheel shaft is 38.5mm,can use large fixture and trimmer.
Slide rail of working stand
Slide rail of saddle is V and flat type desige, TSG-450 is V type with double track,and with(TEFLON)flap,those makes movement ofworking stand light and fast to assure accuracy.
Auto lubrication system
Adapts electromagnetic pump to control continuous circulation of lubricant in order to lubricate all slide rails, up-and-down as well as back-and-forth screw.
Compact and vertical pillar
Adapts H type construction,high intensity,wide span of slide rail,spindle is vibration-free to assure accuracy of finshed product during orocessing.
Spindle with cartridge type
Use super precision (P4) grade of roller/ball bearing,end of bearing is placed under 3μ, sealed type of grease lubrication to secure long life,and it is simple and easy to replace spindle.
Left-and-right driving system
Driven by special wire rope,its movement is light and fast, accurate,and no vibration occurred.
Economical Dust Collecting System

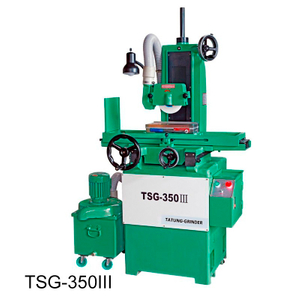

Integrate with main machine (TSG-350), can save space,and it is easy to remove chips.
Complete accessories
Proper for various grinding operation, and fulfill mechanical functions completely.
Standard accessories 1.Grinding wheel(Dia.x thickness x Bore 305øx38x127ø) ⋯⋯⋯⋯⋯⋯⋯⋯1/pcs
2.Flange and plucking tools⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set
3.Blancing bar of grinder wheel⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/pc
4.Stand type of trimmer ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set
5.Working light ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set
6.Horizontal adjusting screw and base plate ⋯⋯⋯⋯ 4/ e ach 4pcs
7.Tools and hand carrying tool case ⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set
8.Squeegee⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/pc
9.T groove screws⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 2/pcs
10.Lubricant ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯6 /liters
11.Hydraulic oil......................................................100 /liters 12.Operation manual ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set
Special accessories (Options) 1.Coolant System
2.Vacuum Coolant injection and magnetic filter device
3.Electromagnetic chuck
4.Automatic rectifier demagnetizer
5.Manual wheel top dresser
6.Hydraulic wheel dresser
7.Grinding wheel balance stand
8.Radius balance
9.Angle trimmer
10.Precision clamp
11.Punch former
